Experiencing that unsettling pulsation in your Audi A4’s brakes? It’s a common issue, but diagnosing the root cause can feel daunting. This comprehensive guide provides an 11-point checklist to help you identify and resolve eight common brake pulsation problems in your Audi A4, from warped rotors and worn brake pads to caliper issues and fluid contamination. We’ll walk you through visual inspections, diagnostic testing, and step-by-step repair procedures, empowering you to regain confident braking performance.
Understanding the nuances of your Audi A4’s braking system is crucial for safe and reliable driving. This guide provides a structured approach to troubleshooting, enabling you to pinpoint the source of the pulsation and implement effective solutions. Whether you’re a seasoned DIY enthusiast or prefer professional assistance, this checklist serves as a valuable resource, outlining the process from initial diagnosis to final repair.
Diagnosing Brake Pulsation in Audi A4
Brake pulsation in an Audi A4, that unsettling vibration felt in the brake pedal, usually points to issues within the braking system. Understanding the common culprits is the first step towards a successful repair. This section will Artikel the most frequent causes and guide you through a thorough diagnostic process.

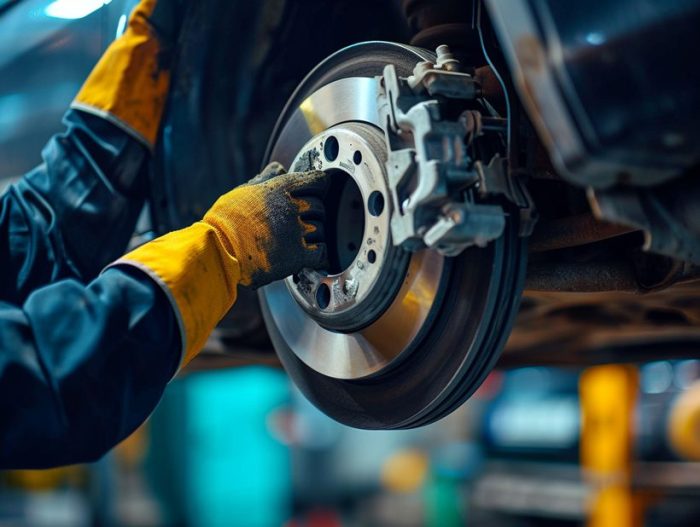

Common Causes of Brake Pulsation
Brake pulsation in an Audi A4 is often caused by warped brake rotors, worn brake pads, or problems with the brake calipers. Warped rotors, unevenly heated and cooled during braking, develop high and low spots on their surface, leading to the pulsating sensation. Worn brake pads, with insufficient material, can also contribute to uneven braking force and pulsation, especially if they are worn unevenly. Faulty calipers, including seized or sticking pistons, prevent even pad contact with the rotor, resulting in inconsistent braking and pulsation. Fluid contamination can also exacerbate these issues by affecting the hydraulics of the system.
Visual Inspection of Brake Components
A visual inspection is crucial for identifying many brake problems. Begin by carefully examining the brake rotors for any signs of scoring, uneven wear, or significant surface imperfections. Look for grooves, ridges, or discoloration indicating uneven heat distribution. Next, assess the brake pads. Measure their thickness using a caliper; if they are significantly worn (below the minimum thickness specified in your Audi A4’s service manual), they need replacement. Also, check for uneven wear across the pad surface. Finally, inspect the brake calipers for signs of damage, corrosion, or sticking pistons. Try to gently push and pull on the caliper pistons to check for free movement; resistance or binding indicates a problem.
Brake Fluid Testing
Contaminated or low brake fluid can negatively impact braking performance and contribute to pulsation. Check the brake fluid reservoir for its level; if it’s low, this points to a leak somewhere in the system, which needs to be addressed immediately. Visually inspect the fluid for discoloration or cloudiness; dark, brown, or otherwise contaminated fluid should be flushed and replaced. While a simple visual check is helpful, a professional brake fluid test can provide a more precise assessment of its condition.
Symptom Comparison Table
The following table summarizes common brake problems, their symptoms, verification methods, and solutions:
| Symptom | Likely Cause | Verification Method | Solution |
|---|---|---|---|
| Brake pedal pulsation | Warped rotors | Visual inspection for scoring, uneven wear | Rotor resurfacing or replacement |
| Brake pedal pulsation | Worn brake pads | Measure pad thickness; inspect for uneven wear | Brake pad replacement |
| Spongy brake pedal, pulsation | Air in brake lines | Check for leaks; bleed brake lines | Bleed the brake system |
| Hard brake pedal, pulsation | Seized caliper piston | Inspect caliper for free movement; test piston functionality | Caliper rebuild or replacement |
| Gradual brake fade, pulsation | Contaminated brake fluid | Visual inspection; professional fluid test | Brake fluid flush and replacement |
Addressing Rotational Issues
Brake rotor issues are a common cause of brake pulsation in the Audi A4. Uneven rotor surfaces or excessive runout can lead to vibrations felt through the brake pedal and steering wheel. Properly assessing rotor condition is crucial for effective repair.
Measuring rotor thickness and runout requires specialized tools for accurate results. Improper measurements can lead to unnecessary repairs or, worse, unsafe braking conditions.
Rotor Thickness and Runout Measurement
To determine if your brake rotors need replacement or machining, you’ll need a caliper to measure thickness and a dial indicator to measure runout. First, clean the rotor surface thoroughly to ensure accurate measurements. Consult your Audi A4’s service manual for the minimum acceptable thickness for your specific model and year. Measure the rotor thickness at multiple points around its circumference, noting the minimum thickness. If the minimum thickness is below the specified limit, replacement is necessary. To check runout, securely mount the dial indicator to a sturdy surface, ensuring the probe is in contact with the rotor’s outer surface. Slowly rotate the rotor, observing the dial indicator’s reading. Excessive runout (typically more than 0.005 inches or 0.127 mm) indicates a need for machining or replacement. Significant runout, exceeding 0.010 inches (0.254 mm), usually necessitates replacement.
Brake Rotor Replacement Procedure
Replacing brake rotors involves several steps and requires adherence to safety precautions. Always use appropriate safety gear, including gloves and eye protection. Before starting, ensure the vehicle is securely parked on a level surface with the parking brake engaged. Loosen the lug nuts on the wheel before lifting the vehicle. Once the wheel is removed, carefully remove the caliper assembly, supporting it with a wire or bungee cord to prevent damage to the brake line. Remove the old rotor and install the new rotor, ensuring it’s properly seated. Reinstall the caliper assembly, ensuring the caliper bolts are tightened to the manufacturer’s specified torque (this information is typically found in your vehicle’s repair manual). Replace the wheel and tighten the lug nuts to the proper torque specification. After installing new rotors, it is crucial to perform a thorough brake bleeding procedure to remove any air from the brake lines. Failure to do so can lead to significantly reduced braking performance and potential safety hazards.
Resurfacing vs. Replacing Brake Rotors
Resurfacing (machining) brake rotors involves removing a thin layer of material from the rotor’s surface to create a smooth, even braking surface. This is a cost-effective option if the rotor thickness remains within acceptable limits after machining. However, resurfacing reduces the rotor’s overall thickness, limiting the number of times this process can be performed. Replacing brake rotors is more expensive but provides a new, consistent braking surface. This ensures optimal braking performance and safety. The decision of whether to resurface or replace depends on the rotor’s thickness and the amount of runout.
Rotor Repair Decision Flowchart
[A flowchart would be included here, visually representing the decision-making process. The flowchart would start with “Measure Rotor Thickness and Runout”. If the thickness is below minimum specification, the path leads to “Replace Rotors”. If the thickness is within specification but runout is excessive (e.g., > 0.010 inches), the path leads to “Replace Rotors”. If both thickness and runout are within specification, the path leads to “No Action Needed”. If the thickness is within specification but runout is slightly excessive (e.g., between 0.005 and 0.010 inches), the path presents a choice: “Resurface Rotors” or “Replace Rotors”, with considerations like cost and remaining rotor thickness influencing the final decision.]
Inspecting and Repairing Other Brake System Components
Beyond addressing rotational issues, a thorough inspection of other brake system components is crucial for resolving brake pulsation in your Audi A4. Neglecting these areas can lead to recurring problems and potentially compromise your safety. This section details the inspection and repair procedures for brake pads, calipers, and the importance of proper brake bleeding.
Brake Pad Inspection and Replacement
Regular brake pad inspection is vital for maintaining optimal braking performance and preventing damage to other brake components. Uneven wear can directly contribute to brake pulsation. To inspect your brake pads, you’ll need to access them through the wheel wells. Carefully remove the wheel and then visually assess the pad thickness. Consult your Audi A4’s service manual for the minimum acceptable pad thickness; pads worn below this threshold must be replaced. Pay close attention to the wear pattern – uneven wear, with one side significantly more worn than the other, often indicates a problem with the caliper or other components. If replacement is necessary, follow the instructions in your service manual for proper pad installation, ensuring they are correctly seated and lubricated where necessary.
Brake Caliper Inspection and Repair
Brake calipers are responsible for applying pressure to the brake pads. Sticking caliper pistons or internal leaks can cause uneven brake pad wear and brake pulsation. To inspect a caliper, visually check for any signs of fluid leaks around the piston seals and mounting bolts. Attempt to push the piston back into the caliper using a specialized caliper piston compression tool; resistance or binding indicates a sticking piston. A seized piston might require specialized tools or even replacement of the entire caliper. Leaks indicate a damaged seal and necessitate caliper repair or replacement. Always use a clean, compatible brake fluid when working with the caliper.
Brake Bleeding Procedure
After any brake system repair, particularly those involving caliper work, it’s essential to bleed the brake system to remove any air that may have entered the lines. Air in the brake lines significantly compromises braking performance and can contribute to a spongy or pulsating brake pedal. Proper bleeding ensures that the brake lines are filled with only brake fluid, maintaining consistent and reliable braking pressure. The bleeding process typically involves opening a bleeder valve on each caliper, one at a time, while an assistant pumps the brake pedal. Fluid should be collected in a container to avoid spills. Continue this process until only clean brake fluid, free of air bubbles, is expelled. Consult your Audi A4’s service manual for the specific bleeding sequence for your vehicle’s brake system. Improper bleeding can lead to air remaining trapped in the lines, resulting in a soft pedal and potentially dangerous braking conditions.
Essential Tools for Brake System Repair
Proper tools are essential for safe and effective brake system repair. A haphazard approach can lead to damage and injury. Here’s a list of essential tools:
- Wheel chocks
- Jack and jack stands
- Wheel wrench
- Caliper piston compression tool
- Brake caliper wrench
- Wrench set (metric)
- Socket set (metric)
- Brake fluid
- Clean rags
- Bleeder wrench
- Clear tubing
- Container for collecting brake fluid
- Gloves
- Safety glasses
Conclusion
Addressing brake pulsation in your Audi A4 requires a systematic approach, combining careful inspection with precise repair techniques. By following this 11-point checklist, you can effectively diagnose the underlying cause of the problem, whether it stems from worn rotors, faulty calipers, or contaminated brake fluid. Remember, prioritizing brake safety is paramount, and seeking professional help when needed ensures your vehicle remains roadworthy and safe to operate. This guide empowers you to take control of your vehicle’s maintenance, leading to a smoother, safer driving experience.
